G-Force® & Easy Arm®
Intelligent lifting devices with patented servo technology – precision, speed and safety.
When speed, precision and programmability matter, choose Gorbel® G-Force® and Easy Arm®.

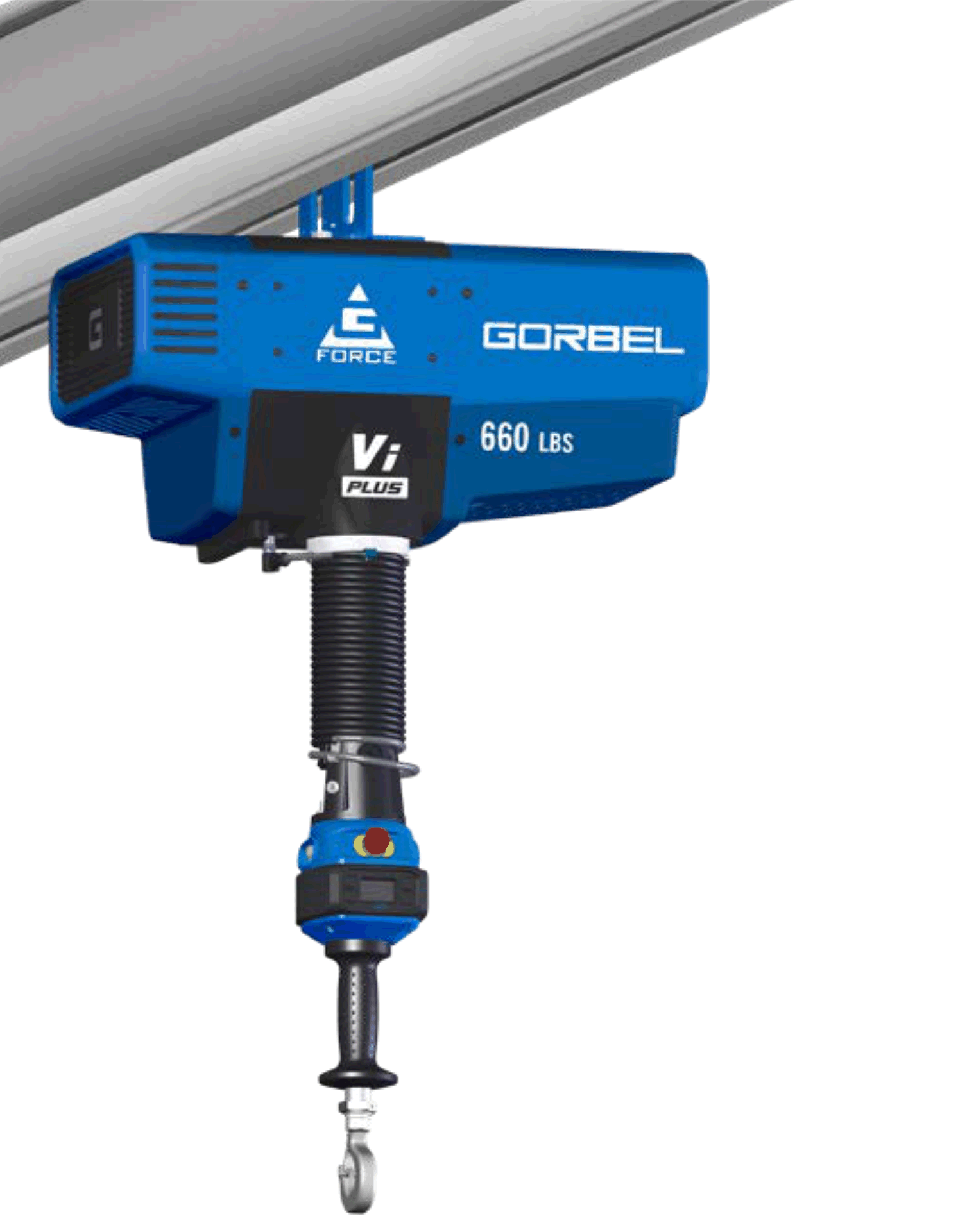

G-Force® balancers
Servo-controlled rope balancers for ergonomic, precise lifting – ideal on bridge cranes and production lines.

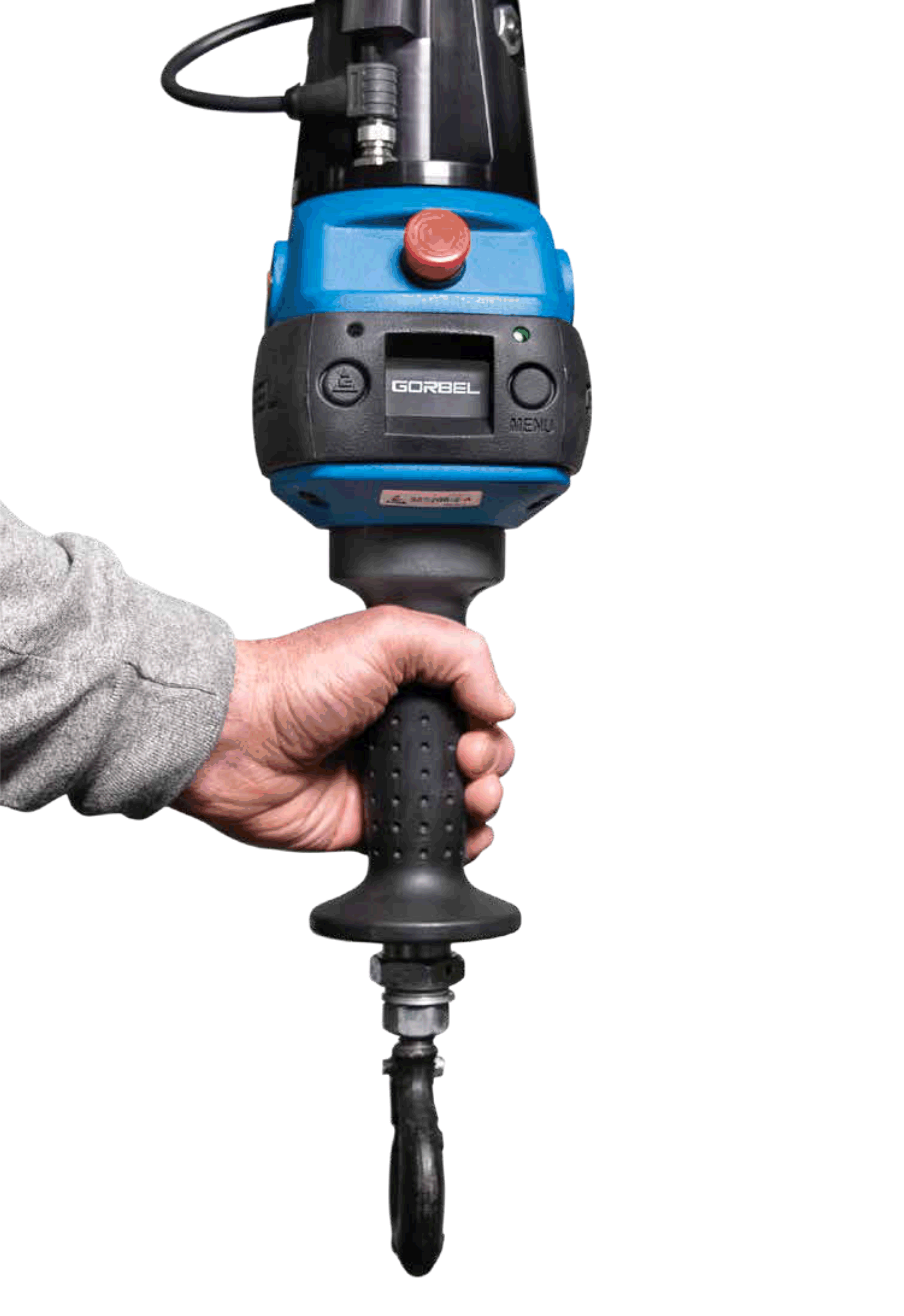

G-Force® controls
Ergonomic handles and controls for intuitive guidance – people steer, technology delivers power and precision.

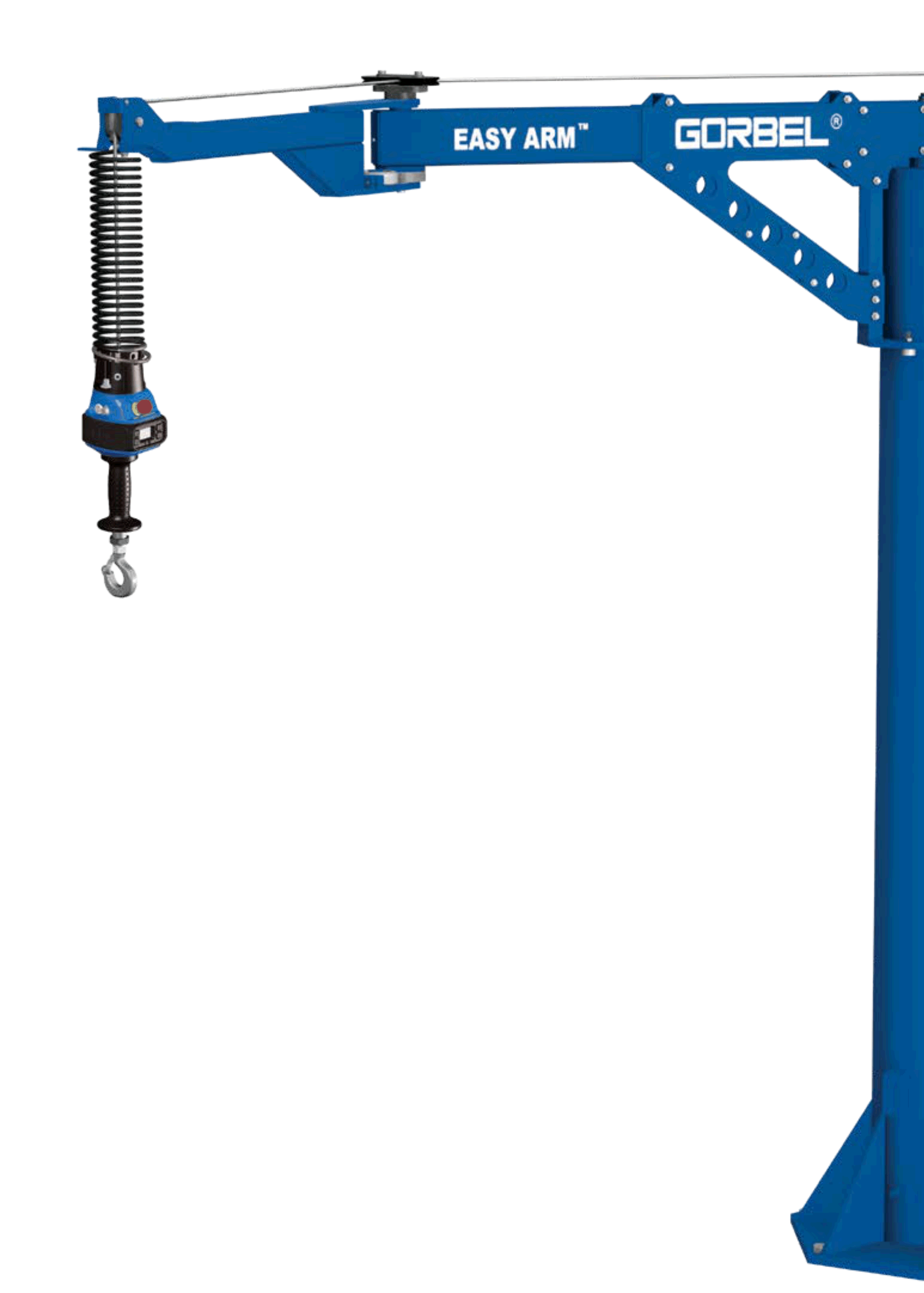

Easy Arm®
The same intelligent lifting technology in an articulating-arm design – flexible positioning for assembly and material handling.
G-Force® & Easy Arm®
Does your lifting application need more than conventional devices can offer? When speed, precision and programmability are important, choose Gorbel® G-Force® and Easy Arm®. These intelligent lifting devices use exclusive patented technology and an industrial-processor-controlled servo drive system for unique precision and speed. Combining modern technology with human guidance maximises productivity and minimises operator injury risk. Choose a G-Force® unit for bridge-crane mounting or our Easy Arm®, which integrates the same lifting technology into an articulating-arm design. Both configurations are available in two models so you can select the functions that fit your applications.
Easy Arm® – technical data (excerpt)
| Parameter | 165 lb / 75 kg | 330 lb / 150 kg | 660 lb / 300 kg |
|---|---|---|---|
| Max capacity (load & tool) | 165 lb / 75 kg | 330 lb / 150 kg | 660 lb / 300 kg |
| Max lifting speed unloaded | 175 fpm / 53 mpm | 80 fpm / 24 mpm | 40 fpm / 12 mpm |
| Max lifting speed fully loaded | 125 fpm / 38 mpm | 50 fpm / 15 mpm | 30 fpm / 9 mpm |
| Max float-mode lifting speed | 90 fpm / 27 mpm | 40 fpm / 12 mpm | 36 fpm / 11 mpm |
| Max lift range | 11 ft / 3.4 m | ||
| Max arm span | 14 ft / 4.3 m | ||
